RXM24WVJU9
Daikin 24,000 BTU 2 Ton
Single-Zone Wall
Cold Climate
Ductless Heat Pump
The RXM24WVJU9 is a Daikin ATMOSPHERA cold-climate single-zone wall-mount ductless heat pump paired with the matching FTXM indoor head. It’s the largest single-zone option in this lineup, using inverter-driven output and R-32 refrigerant to deliver high-capacity heating and cooling with strong cold-weather performance.
This 24k size is for big single zones that actually need it — large open basements, big open-concept main floors, or large areas with significant heat loss/gain (lots of windows, sun exposure, older envelope). Done right, it can be a very effective “main floor” comfort solution without relying as heavily on fossil heat.
At this size, application matters. If the space doesn’t truly need 24k, you can lose comfort stability. We validate the match on-site and make sure placement and commissioning are correct so performance is predictable.
We confirm sizing and pricing on site – no pressure, no upsells.
Installed in Ottawa and surrounding areas by Peak Comfort HVAC

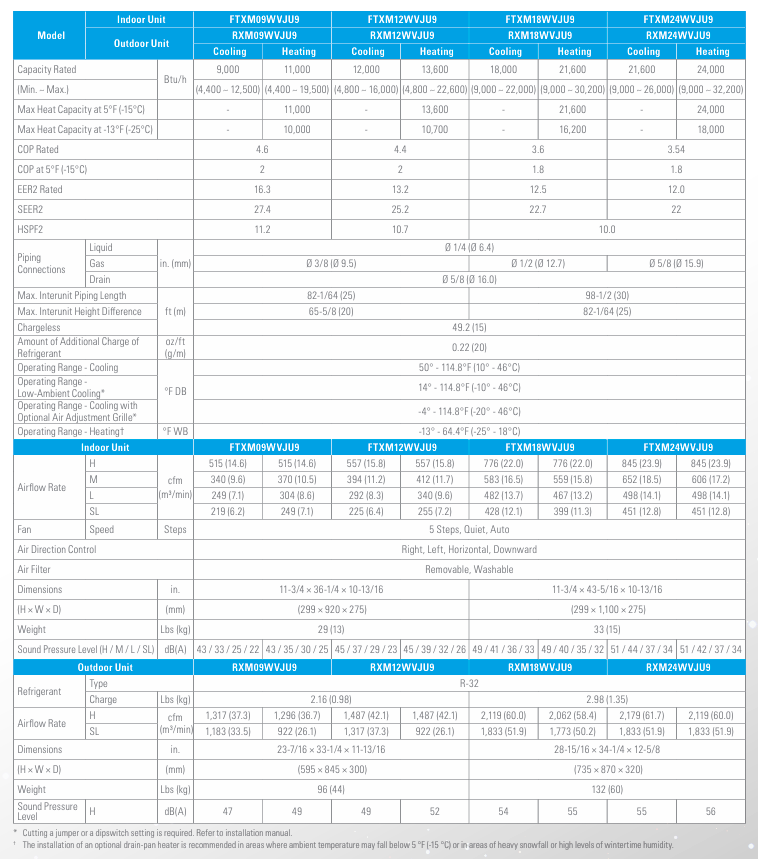

Specs for the RXM24WVJU9
- System type: Single-zone wall-mount cold-climate ductless heat pump (Daikin ATMOSPHERA / R-32)
- Rated capacity: 21,600 BTU/h cooling / 24,000 BTU/h heating
- Max heating capacity: 24,000 BTU/h @ 5°F (-15°C)
- Max heating capacity: 18,000 BTU/h @ -13°F (-25°C)
- Matched indoor unit: FTXM24WVJU9
- Matched outdoor unit: RXM24WVJU9
- Efficiency: 22.0 SEER2 / 12.0 EER2 / 10.0 HSPF2
- COP: 3.54 rated / 1.8 @ 5°F (-15°C)
- Lowest sound level: Indoor 34 dB(A) cooling / 34 dB(A) heating; Outdoor 55 dB(A) cooling / 56 dB(A) heating
- Refrigerant: R-32
- Indoor dimensions (H×W×D): 11-3/4" × 43-5/16" × 10-13/16"
- Outdoor dimensions (H×W×D): 28-15/16" × 34-1/4" × 12-5/8"
- Weight: Indoor 33 lb / Outdoor 132 lb
- AHRI reference #: TBD
Technical documents
Key features of the RXM wall-mount system
- Cold-climate heating performance: designed to deliver strong heat output in low outdoor temperatures (including operation down to -13°F / -25°C).
- Inverter-driven modulation: ramps output up/down for steadier temperatures and fewer “blast then stop” swings.
- High efficiency ratings (model-dependent): up to 27.4 SEER2 and up to 11.2 HSPF2 across the lineup.
- R-32 refrigerant: lower-GWP refrigerant used in Daikin’s next-generation single-zone ductless equipment.
- Humidity control features: hybrid cooling and dry-mode style control strategies to reduce humidity without overcooling.
- Comfort-focused airflow control: comfort mode + 3D airflow behaviors designed to distribute air more evenly and avoid drafts.
- Built-in Wi-Fi / app control: optional smartphone control without needing a separate add-on adapter (setup and usability vary by home).
- Install details matter (Peak Comfort standard): correct sizing, clean line routing, proper drainage planning, pressure test + evacuation, and start-up checks with real measurements — not guesswork.
- Winter reliability note: a drain-pan heater is commonly recommended in heavy snowfall / high winter humidity areas or where temps can drop below about 5°F (-15°C), to help manage ice.
Want to see if this ductless is the right fit?
Book a no-pressure ductless estimate. We’ll confirm layout, placement, and sizing - then give you clear options and pricing.
