5MXM48AVJU9
Daikin 48,000 BTU 4 Ton
Multi-Zone
Ductless Heat Pump
The 5MXM48AVJU9 is a Daikin regular (standard) multi-zone outdoor heat pump designed to connect to up to five indoor units. It’s the “max flexibility” option in this standard multi lineup — one condenser supporting a full set of zones across a home.
This model is best when you truly need five separate comfort zones — for example: a main living area, multiple bedrooms with different temperature preferences, a basement, and a bonus room that never balances well. It can also be a great solution for homes where you want to avoid ductwork changes, but you still want full-room control and a clean outdoor look.
With five zones, we’re extra disciplined:
- We don’t oversize indoor heads “just in case.”
- We keep head selection intentional (you can mix types).
- We plan piping and installation so service access and long-term reliability are protected.
The goal is a system that’s quiet, stable, and easy to live with — not one that’s constantly fighting itself.
We confirm sizing and pricing on site – no pressure, no upsells.
Installed in Ottawa and surrounding areas by Peak Comfort HVAC

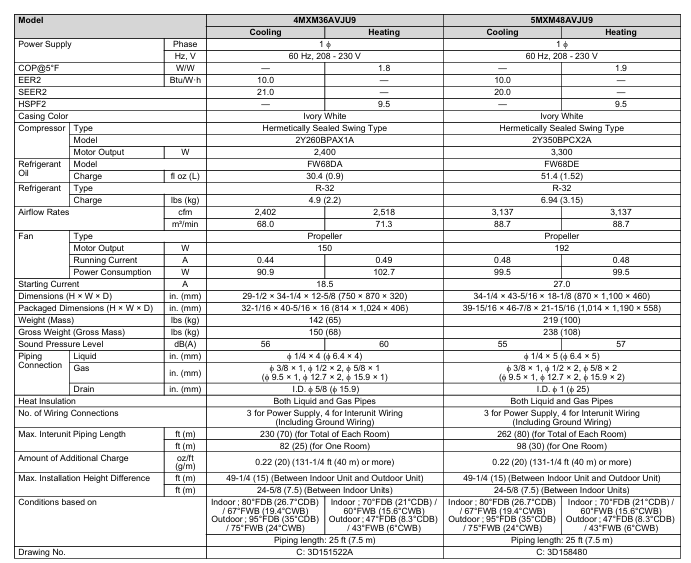

Specs for the 5MXM48AVJU9
- - System type: Multi-zone outdoor heat pump (Standard / Regular type)
- - Zones supported: Up to 5 indoor units
- - Power supply: 1φ, 208–230V, 60Hz
- - Efficiency (published): 20.0 SEER2 / 10.0 EER2 / 9.5 HSPF2
- - COP @ 5°F (-15°C) (heating): 1.9
- - Refrigerant: R-32
- - Factory refrigerant charge: 6.94 lb (3.15 kg)
- - Sound pressure level: 55 dB(A) cooling / 57 dB(A) heating
- - Outdoor dimensions (H×W×D): 34-1/4" × 43-5/16" × 18-1/8"
- - Weight: 219 lb
- - Piping connections (liquid): 1/4" × 5
- - Piping connections (gas): 3/8" × 1 + 1/2" × 2 + 5/8" × 2
- - Max interunit piping length: 262 ft (total) / 98 ft (each room)
- - Max installation height difference: 49-1/4 ft (between outdoor & indoor) / 24-5/8 ft (between indoor units)
- - Additional charge (if required): 0.22 oz/ft (20 g/m) (131-1/4 ft (40 m) or more)
- - AHRI reference #: TBD
Technical documents
Key features of the MXM Multi Zone Heat Pump
- Key features of Daikin Standard Multi-Zone (2MXM / 3MXM / 4MXM / 5MXM)
- One outdoor unit, multiple zones: supports up to 2 / 3 / 4 / 5 indoor units depending on the model.
- Independent zone control: each indoor unit can be controlled separately for room-by-room comfort.
- Cleaner exterior footprint: fewer outdoor units compared to installing multiple single-zone systems.
- Flexible indoor unit options: can pair with common indoor styles (wall mounts, floor consoles, ceiling cassettes, slim ducts), depending on the matched system design.
- Inverter-driven modulation: ramps output to reduce on/off cycling and maintain steadier indoor temperatures.
- Shared-capacity reality (important): total outdoor capacity is shared across zones when multiple areas call at once — design and sizing matter.
- Installation limits matter: total piping length, per-room runs, and height differences must be planned correctly for performance and reliability.
- Peak Comfort install standard: correct design, clean line routing, pressure test + evacuation, and start-up/commissioning with real measurements — no guesswork.
- No upsell / no scare tactics: we recommend what fits the home and usage, explain tradeoffs plainly, and price it clearly.
Want to see if this ductless is the right fit?
Book a no-pressure ductless estimate. We’ll confirm layout, placement, and sizing - then give you clear options and pricing.
