4MXTH36AVJU9
Daikin 36,000 BTU 3 Ton
Multi-Zone
Cold Climate
Ductless Heat Pump
The 4MXTH36AVJU9 is a Daikin cold-climate multi-zone outdoor heat pump designed to connect to up to four indoor units. It’s inverter-driven, uses R-32 refrigerant, and (when matched correctly) stays fully rebate-qualifying for cold-climate ductless rebate programs.
This unit is a great fit when you want multi-room comfort across a larger home footprint — often a mix like: main floor living space + a couple bedrooms + a basement zone, or four bedrooms/zones that never balance well. It also helps keep the exterior tidy (one condenser instead of multiple single-zone outdoor units).
At four zones, the design choices matter even more: indoor unit types (wall/floor/cassette/slim duct), sensible sizing (no “just in case” oversizing), and piping layout within limits. We design it so it behaves predictably in real life — not just on paper.
We confirm sizing and pricing on site – no pressure, no upsells.
Installed in Ottawa and surrounding areas by Peak Comfort HVAC

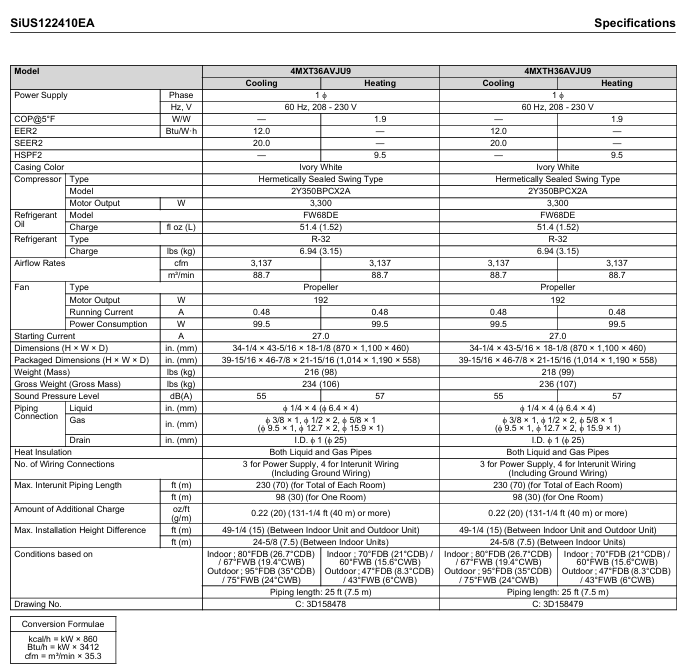

Specs for the 4MXTH36AVJU9
- - System type: Cold-climate multi-zone outdoor heat pump (MXTH)
- - Zones supported: Up to 4 indoor units
- - Power supply: 1φ, 208–230V, 60Hz
- - Efficiency (published): 20.0 SEER2 / 12.0 EER2 / 9.5 HSPF2
- - COP @ 5°F (-15°C) (heating): 1.9
- - Refrigerant: R-32
- - Factory refrigerant charge: 6.94 lb (3.15 kg)
- - Sound pressure level: 55 dB(A) cooling / 57 dB(A) heating
- - Outdoor dimensions (H×W×D): 34-1/4" × 43-5/16" × 18-1/8"
- - Weight: 218 lb
- - Piping connections (liquid): 1/4" × 4
- - Piping connections (gas): 3/8" × 1 + 1/2" × 2 + 5/8" × 1
- - Max interunit piping length: 230 ft (total) / 98 ft (one room)
- - Max installation height difference: 49-1/4 ft (between outdoor & indoor)
- - Additional charge (if required): 0.22 oz/ft (20 g/m) (131-1/4 ft (40 m) or more)
- - AHRI reference #: TBD
Technical documents
Key features of the MXTH Multi Zone Heat Pump
- Key features of Daikin Cold Climate Multi-Zone (MXTH)
- Cold-climate multi-zone platform: chosen for stronger winter performance potential than “standard type” multi-zone.
- Rebate-qualifying potential: these cold-climate outdoor units are commonly used in rebate-eligible ductless designs (final eligibility depends on the matched indoor units and program rules).
- One outdoor unit, multiple zones: supports up to 2 / 3 / 4 / 5 indoor units depending on the model.
- Independent room control: each indoor unit has its own thermostat/control for real zone-by-zone comfort.
- Cleaner exterior footprint: fewer outdoor units compared to running multiple single-zone systems.
- Flexible indoor unit choices: can be paired with wall mounts, floor consoles, ceiling cassettes, and slim-duct options (model match rules apply).
- Shared-capacity reality (important): total outdoor capacity is shared — when multiple zones call hard at once, the system allocates output.
- Design + commissioning matter: indoor unit sizing, head selection, line lengths, height differences, and clean startup checks are what make multi-zone feel stable and “set it and forget it.”
- Peak Comfort install standard: correct design, tidy piping, proper pressure test + evacuation, and start-up verification with real measurements — no guesswork, no upsells.
Want to see if this ductless is the right fit?
Book a no-pressure ductless estimate. We’ll confirm layout, placement, and sizing - then give you clear options and pricing.
