3MXTH24AVJU9
Daikin 24,000 BTU 2 Ton
Multi-Zone
Cold Climate
Ductless Heat Pump
The 3MXTH24AVJU9 is a Daikin cold-climate multi-zone outdoor heat pump designed to connect to up to three indoor units. It’s inverter-driven, uses R-32 refrigerant, and is set up to be rebate-qualifying when matched with eligible indoor units and installed to program requirements.
This is a strong “3-zone comfort fix” when you’ve got three problem areas that need independent control — for example: main living area + primary bedroom + finished basement, or three bedrooms with different temperature preferences. It keeps the outside of the home clean with one condenser, while giving room-by-room control indoors.
Because it’s multi-zone, it’s not the same as three separate single-zone systems. The outdoor unit shares capacity across zones when multiple rooms call hard at once. The way you avoid disappointment is good design: right indoor unit selection, realistic expectations, and clean commissioning.
We confirm sizing and pricing on site – no pressure, no upsells.
Installed in Ottawa and surrounding areas by Peak Comfort HVAC

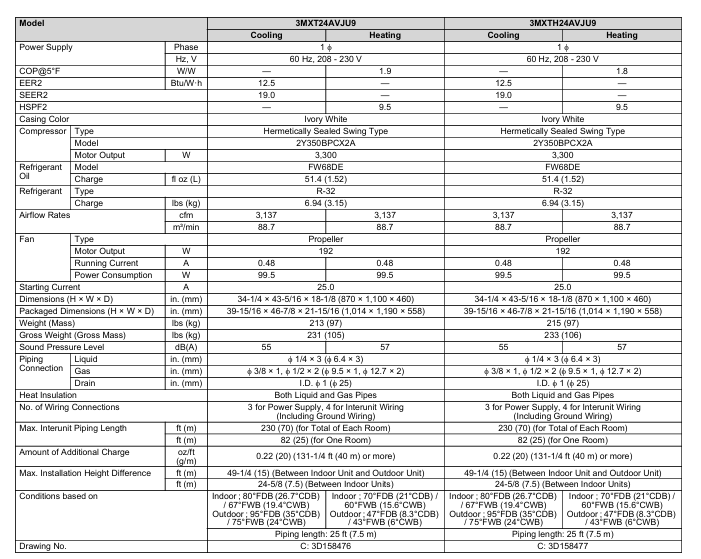

Specs for the 3MXTH24AVJU9
- - System type: Cold-climate multi-zone outdoor heat pump (MXTH)
- - Zones supported: Up to 3 indoor units
- - Power supply: 1φ, 208–230V, 60Hz
- - Efficiency (published): 19.0 SEER2 / 12.5 EER2 / 9.5 HSPF2
- - COP @ 5°F (-15°C) (heating): 1.8
- - Refrigerant: R-32
- - Factory refrigerant charge: 6.94 lb (3.15 kg)
- - Sound pressure level: 55 dB(A) cooling / 57 dB(A) heating
- - Outdoor dimensions (H×W×D): 34-1/4" × 43-5/16" × 18-1/8"
- - Weight: 215 lb
- - Piping connections (liquid): 1/4" × 3
- - Piping connections (gas): 3/8" × 1 + 1/2" × 2
- - Max interunit piping length: 230 ft (total) / 82 ft (each room)
- - Max installation height difference: 49-1/4 ft (between outdoor & indoor) / 24-5/8 ft (between indoor units)
- - Additional charge (if required): 0.22 oz/ft (20 g/m) (131-1/4 ft (40 m) or more)
- - AHRI reference #: TBD
Technical documents
Key features of the MXTH Multi Zone Heat Pump
- Key features of Daikin Cold Climate Multi-Zone (MXTH)
- Cold-climate multi-zone platform: chosen for stronger winter performance potential than “standard type” multi-zone.
- Rebate-qualifying potential: these cold-climate outdoor units are commonly used in rebate-eligible ductless designs (final eligibility depends on the matched indoor units and program rules).
- One outdoor unit, multiple zones: supports up to 2 / 3 / 4 / 5 indoor units depending on the model.
- Independent room control: each indoor unit has its own thermostat/control for real zone-by-zone comfort.
- Cleaner exterior footprint: fewer outdoor units compared to running multiple single-zone systems.
- Flexible indoor unit choices: can be paired with wall mounts, floor consoles, ceiling cassettes, and slim-duct options (model match rules apply).
- Shared-capacity reality (important): total outdoor capacity is shared — when multiple zones call hard at once, the system allocates output.
- Design + commissioning matter: indoor unit sizing, head selection, line lengths, height differences, and clean startup checks are what make multi-zone feel stable and “set it and forget it.”
- Peak Comfort install standard: correct design, tidy piping, proper pressure test + evacuation, and start-up verification with real measurements — no guesswork, no upsells.
